TS299L

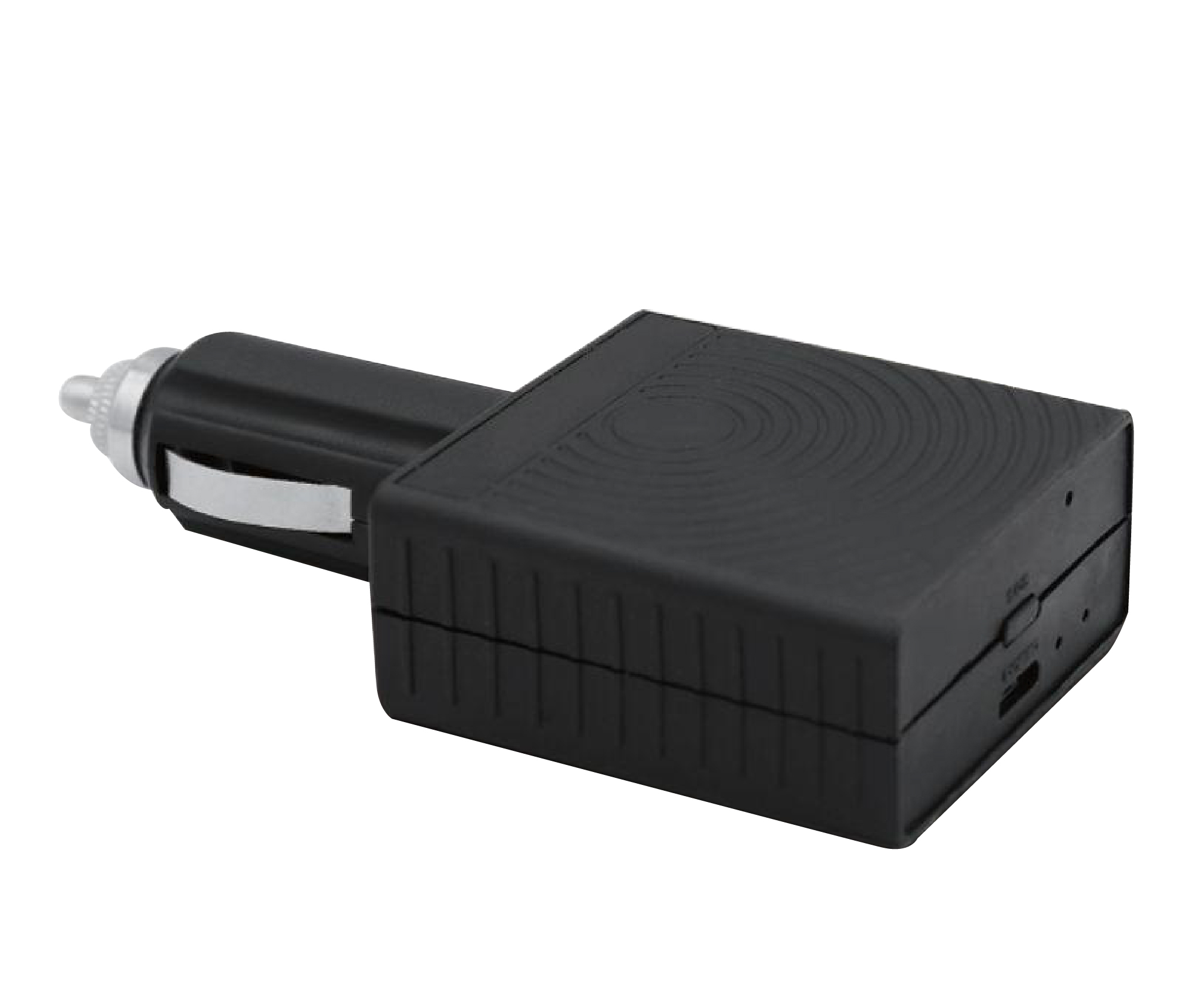

4G WiFi Cigarette Lighter GPS Tracker

Plug & play​

This tracker with cigarette lighter plug can be fastly and easily installed.

4G WiFi hotspot​

Act as an in-vehicle WiFi hotspot, up to 8 WiFi enabled devices.

SOS Button​

An instant alert will be received when the SOS
button is pressed.

Disconnect alert​

When the device is removed from the cigarette
lighter receptacle, an alert will be generated.

Application

Private Car

Taxi

Truck

Specifications

ItemSpecifications
Dimension105 mm x 51 mm x 23.5 mm
Weight60g
Power SupplyDC 11.5–36 V / 1 A
Backup Battery110 mAh/3.7 V
Battery LifePower-saving mode: 12 hours; Normal working mode: 1 hour
Power ConsumptionCurrent in standby mode: 100 mA
Operating Temperature-20°C to 55°C
Operating Humidity5%-95%
LED Indicator2 LED indicators showing GSM and GPS status
Button/Switch2 LED indicators showing GSM and GPS status
MicrophoneMicrophone
MemoryButton/Switch
SensorMicrophone
Frequency BandTS299L-E: LTE FDD:B1/B3/B7/B8/B20/B28A,
WCDMA:B1/B8, GSM/GPRS:B3/B8
TS299L-A: LTE FDD:B2/B4/B12, WCDMA:B2/B4/B5,
TS299L-AU: LTE FDD:B1/B2/B3/B4/B5/B7/B8/B28, LTE TDD:B40,
GPS Sensitivity-161 dB
Positioning Accuracy2.5 meters
I/O Port1 USB port
Wifi Funtion (Optional)2.4 GHz WiFi hotspot

Accessories

  • TS299L Tracker
  • USB cable
  • CD download card
