GENTrack MDVR

See what you track and live view on automated alerts.

1. What is Mobile DVR?

Why do you need mobile dvr?

As we all know, transportation is part of nearly everybody’s daily life; people use vehicles for work and leisure travel, schools dispatch buses to pick up students and send them home, logistics companies use vehicles to deliver goods. We can say the very fabric of society – people and assets – is being transported from one place to another every minute of every day. Securing them is obviously extremely important.

A mobile DVR with GTS integration has one of its prime roles in helping to secure such situations, protecting people flow and assets and ensuring the safety of traffic environments.

What benefits could Mobile DVR with integrated GPS could bring to you?

Our MDVR and GPS technology is specifically designed for vehicles, such as buses, cars, subway trains, etc.

A good quality mobile DVR can record for a continuous time without failure; it can withstand the frequent vibration and unstable power supply associated with vehicles, factors which are fatal to a regular DVR. It can provide evidence of traffic accidents and harsh driver behaviour while uploading alarm information to our control platforms in emergency situations through 3G / 4G/ LTE/ 5G functions.

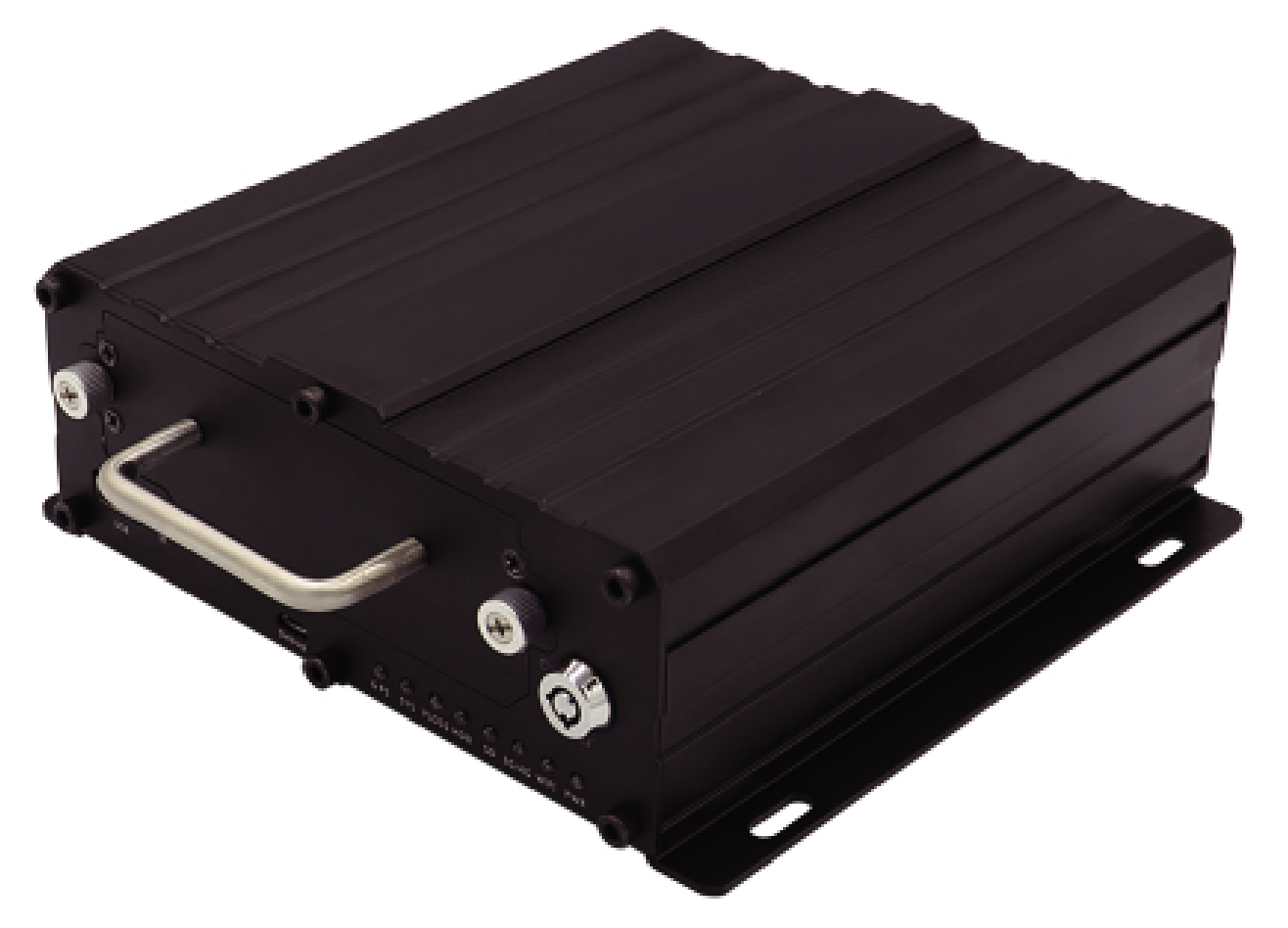

A good quality mobile DVR will also have a long life span and give stable performance, which helps customers to reduce maintenance costs. Our 4ch to 8ch Mobile DVR is one of the most popular solutions for vehicles monitoring.

2. What is included in a 4ch Mobile DVR solution?

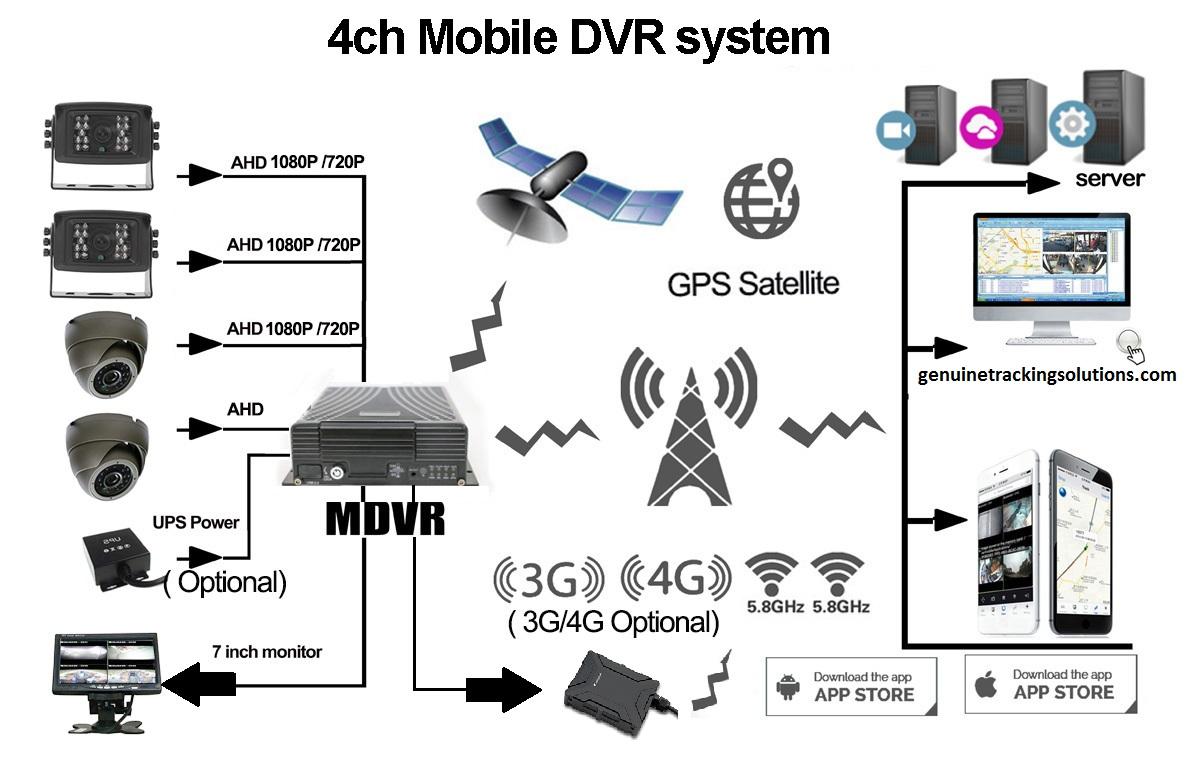

4ch Mobile DVR system includes hardware and software. Below pictures may help you have a clear idea about the whole system. 4ch Mobile DVR system hardware includes 4 cameras, 1 monitor, 1 MDVR with our GT366G Tracker. The software part includes server account creation, IVMS client platform and APP software to view location and activities in real-time.

A mobile DVR has one of its prime roles in helping to secure such situations, protecting people flow and assets and ensuring the safety of traffic environments.

3. What’s the capacity of the hard disk is the best for 4ch Mobile DVR?

Usually, the video will be stored in the hard disk. 1-hour video from a camera will take around 900 MB space. So if we install 1 TB hard disk for a 4ch Mobile DVR it can store the video for about 290 hours.

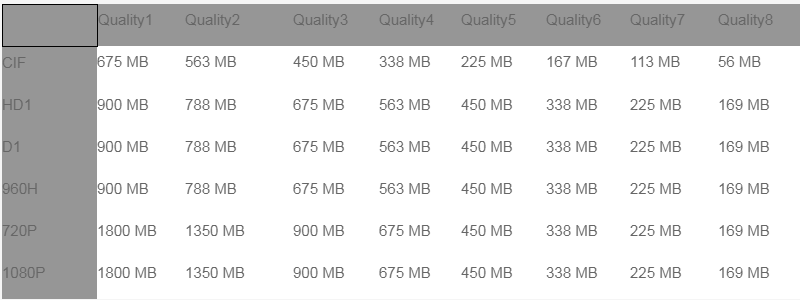

It could be around 23 days if a vehicle works no more than 12 hours every day. If we install 500GB hard disk for a 4ch Mobile DVR it can be store the video for 142 hours. Below is the data from our testing. 1 camera per hour from difference resolution with difference Bit.

4. What kind of vehicles may need 4ch Mobile DVR?

Most of the vehicle have to use 4 cameras at least. For example, a school bus, Mini public bus, truck, and police car etc.

5. How does the installation look like?

Most installations are done in a way to reduce visual components like wiring, camera housing and MDVR location. Our Genuine Technicians are certified installers, producing a quality outcome by hiding all wires above head liners or below the cabs paneling.

GPS trackers are hidden under the dashboard and connected with the MDVR that is also no accessible to general personnel. All MDVR’s are key and password protected to ensure any footage that needs to be accessed is accessed by priority staff only.

6. How do you install each camera for 4ch Mobile DVR?

4ch Mobile DVR needs to install 4 cameras at least in a system.



The first camera will be used to record the driver inside cabin.

The second camera for the blank area which can be installed outside the truck near the mirror.

The 3rd camera can be installed outside the truck for the rear side.

The last camera is for record for forwarding on the road. You can also connect 1 IP camera if you need 5 cameras in the system. Our MDVR supports 5 channels in total.

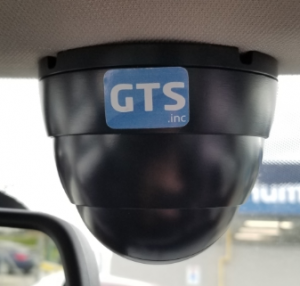

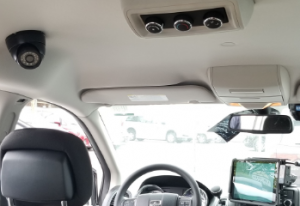

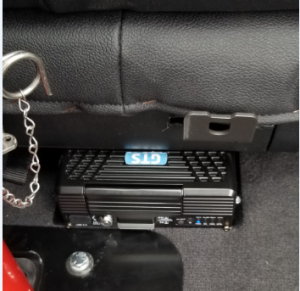

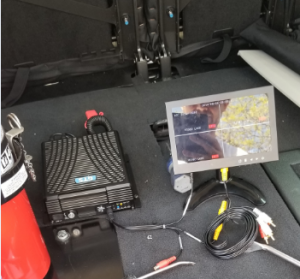

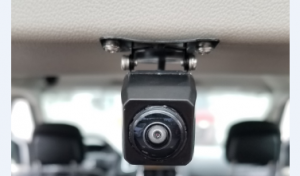

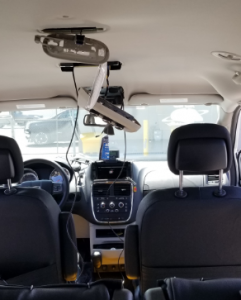

Install Pictures

With the rapid development of logistics industry, logistics infrastructure and equipment conditions have great development and improvement, but the loss of orders, damage and cargo leakage phenomenon still exists, at this moment logistics companies can not know in real time the vehicle is entering the logistics park, it is difficult to effectively safeguard the safety of goods, vehicle illegal driving speed and other problems are still one of the major bottleneck restricting the development of logistics enterprises.

Problems of logistics freight cars

①  Out of date logistics area records, can not be effectively known and real-time scheduling.

②  Cargo safety is difficult to guarantee.

③  It is difficult to control the vehicle without live feedback.

④  High oil costs become the biggest operating cost of the company.

⑤  The destination of the vehicle is unknown and the route is De-toured.

⑥  Vehicle utilization rate is low, vehicle costs remain high.
