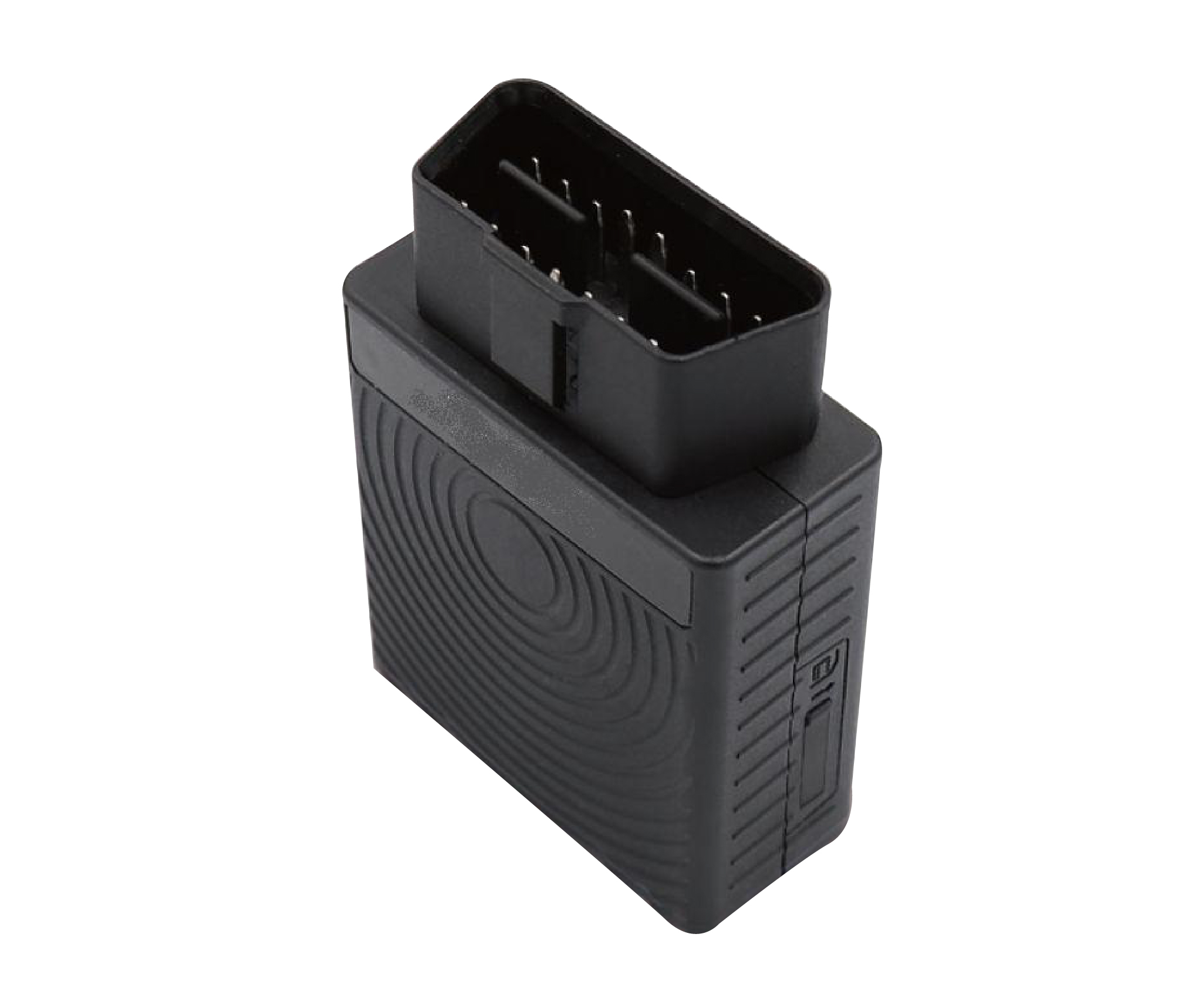

TC68L

4G WiFi Plug & Play Vehicle GPS Tracker

OBD Data

Read a wide range of OBD data including driving behavior, fuel, mileage, speed, & temperature etc.

Plug & Play

This tracker with OBD connector can be fastly and easily installed.

4G WiFi Hotspot

Act as an in-vehicle WiFi hotspot, up to 8 WiFi enabled devices.

Disconnect Alert

An instant alert will be received when the device is removed.

Application

Private Car

Taxi

Truck

Specifications

ItemSpecifications
Dimension67 mm x 51 mm x 23.5 mm
Weight60g
Power SupplyDC 11.5–36 V / 1 A
Backup Battery110 mAh/3.7 V
Battery LifePower-saving mode: 12 hours; Normal working mode: 1 hour
Power ConsumptionCurrent in standby mode: 100 mA
Operating Temperature-20°C to 55°C
Operating Humidity5%-95%
LED Indicator2 LED indicators showing GSM and GPS status
Button/Switch1 SOS Button
MicrophoneInternal Microphone
Memory8 MB Buffer
Sensor3-axis Accelerometer
Frequency bandTC68L-E: LTE FDD:B1/B3/B7/B8/B20/B28A, WCDMA:B1/B8, GSM/GPRS:B3/B8
TC68L-A: LTE FDD:B2/B4/B12, WCDMA:B2/B4/B5
TC68L-AU: LTE FDD:B1/B2/B3/B4/B5/B7/B8/B28, LTE TDD:B40,
WCDMA:B1/B2/B5/B8, GSM/GPRS:B2/B3/B5/B8
TC68L-J: LTE FDD:B1/B3/B8/B18/B19/26
GPS Sensitivity-161 dB
Positioning Accuracy2.5m
I/O Port1 USB Port
Wifi Function (Optional)2.4 GHz WiFi hotspot

Accessories

  • TC68L Tracker
  • USB cable
  • CD download card

Optional Accessories

  • OBD extension cord
  • Velcro
