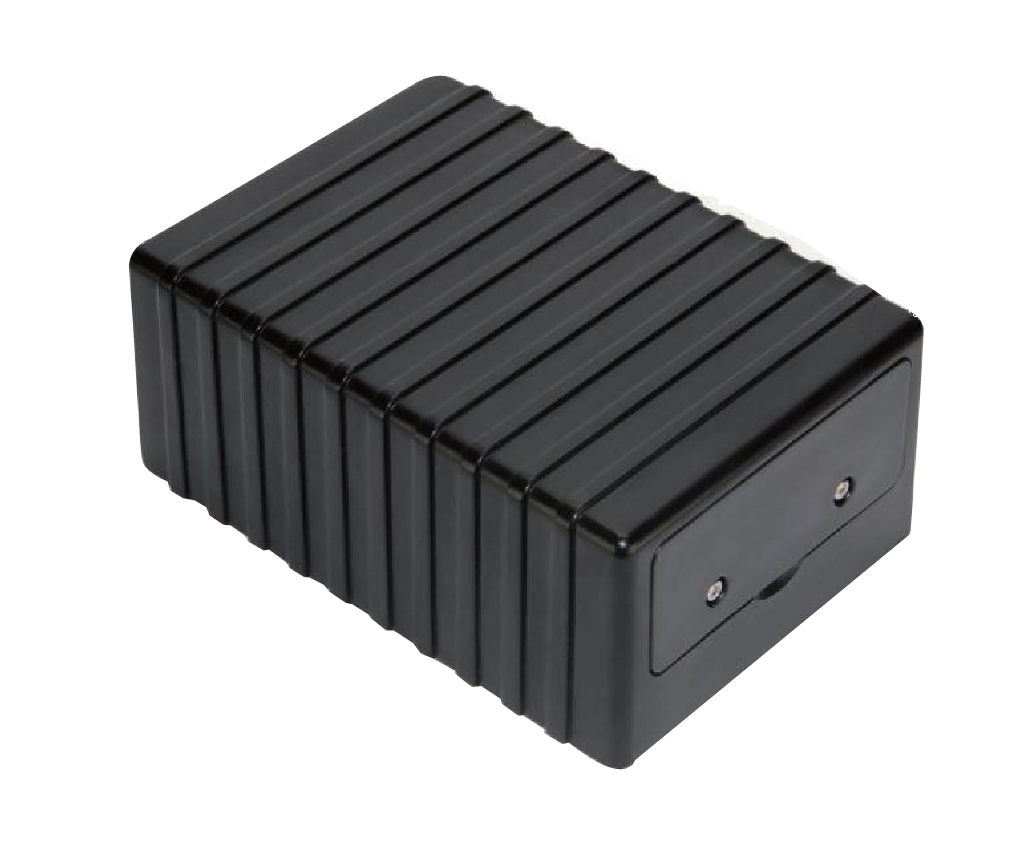

T355G

3G Asset GPS Tracker

Over 4 years long standby time

Inbuilt high capacity battery which ensures remarkably power efficient.

Magnetic Installation

Contain two industrial magnets which facilitates it attach to flat metal surface.

IP66 water resistant

Hard and rugged enclosure guarantees it complete shockproof and durable.

Multiple alerts & reports

Support speeding/drop/geo-fence alerts, cornering/heartbeat reports etc.

Application

Container

Ship

Valuables

Vehicle

Specifications

ItemParameterSpecifications
Outer CaseDimension105 mm x 75 mm x 45 mm
MaterialABS
Water ResistanceIP66
Power ConsumptionWorking Voltage3.7 V
Average Current50 mA
Current in standby mode50 uA
Internal Battery7400 mAh/3.7 V
Working HourConsecutive working hours: > 120 hours
A piece of data per day: > 2 years
Standby time: > 4 years (Ambient temperature: 20°C)
I/O Port1-Wire interface (optional)1
A/D interface (optional)1
GSMFrequency band850/900/1800/1900 MHz
AntennaInternal antenna
WCDMAFrequency band (T355G)800/850/900/1900/2100 Mhz (Global)
Frequency band (T355G-A)850/1900 Mhz (America)
Frequency band (T355G-E)900/2100 Mhz (Europe and Asia)
Frequency band (T355G-AU)850/900/2100 Mhz (Australia)
Frequency band (T355G-JP)800/900/2100 Mhz (Japan)
GPSPositioning accuracy2.5 meters
GPS sensitivity-162 dBm
Positioning timeCold start: < 42 seconds
Hot start: < 3 seconds
Recapture time: < 2 seconds
Satellite receiving channel56 channels
AntennaInternal/External antenna
Ambient environmentOperating temperature-15°C to 65°C
Storage temperature-25°C to 70°C
Operating humidity5%–95% non-condensing
Weight322g
SensorBuilt-in 3-axis accelerometer (used to determine movement, stillness, and vibration.)
Memory8 MB buffer (Store up to 8,192 GPRS/UMTS cache records and 100 SMS cache records)
LED indicatorLED indicators showing power, GPS, 2G, and 3G status

Accessories

  • T355G Tracker
  • Travel adapter
  • Mini USB cable
  • Switch sticker
  • CD download card

Optional Accessories

  • External GPS antenna
