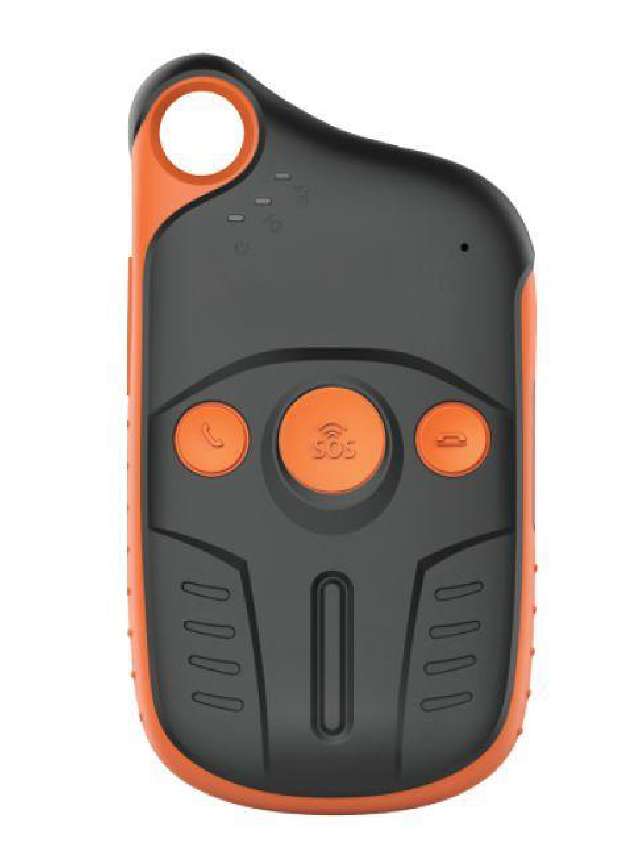

P99 Series

Portable GPS Tracker

IP67 Water Resistant

Specialized design guarantees a stable operating performance.

Wireless Charging (optional)

Support wireless charging to avoid complicated cabling.

400 hours' standby time

Internal 200 mAh battery, and smart sleep mode supported.

WIFI Positioning (optional)

Embedded WIFI module (2.4 GHz, 802.11 b/g/n) allows to WIFI positioning.

Application

Sports Lover

Miner

Construction Worker

Electrician

Specifications

ItemSpecifications
Dimension108 mm x 52 mm x 18 mm
Weight106g
Frequency bandP99L:
P99L-E:
LTE-FDD B1/B3/B7/B8/B20, UMTS/PSPA+ B1/B8, GSM/GPRS/EDGE 900/1800MHZ
P99L-A:
LTE-FDD B2/B4/B12, UMTS/PSPA+ B2/B5
P99L-SA:
LTE-FDD B1/B3/B5/B7/B8/B28, UMTS/PSPA+ B1/B5
P99E:
Cat M1 & NB1:
LTE FDD: B1/B2/B3/B4/B5/B8/B12/ B13/B18/B19/B20/B26/B28
LTE TDD: B39(for Cat M1 only),
EGPRS: 850/900/1800/1900 P99G: GSM: 850/900/1800/1900 MHz
UTMS: 800/850/900/1900/2100 MHz
WiFi positioningWiFi 2.4GHz, 802.11 b/g/n
GPS positioning accuracy2.5m
Water resistance ratingIP67 (Withstand being submerged in water for up to 30 mins in a 1-meter depth.)
Operating temperature-20°C to 55°C
Operating humidity5%–95%
Memory8 MB
Sensor3-axis accelerometer
Microphone/ SpeakerInternal microphone and speaker
LED indicator3 indicators showing power, WiFi, GSM, and GPS status
Backup battery2000 mAh/3.7 V
Power consumption (normal) 40 mA (average current; 3.8 V; GPS ON; WiFi ON; upload data every 60 minutes)
50 hours of battery life: upload data every 60 minutes
Power consumption (standby)5 mA (average current; 3.8 V; GPS OFF; WiFi OFF; don’t upload data)
400 hours of battery life
Charging2 charging methods:
a) Wireless charging (optional): 500 mA (charging time: about 6.5 hours)
b) Magnetic charging: 1800 mA (charging time: about 2.5 hours)
Button/ Switch1 SOS button (used for sending SMS/GPRS alarms and calling)
1 power button
2 volume buttons
1 answer button
1 hang-up button

Accessories

  • P99 Series tracker
  • Magnetic charging cable
  • Travel adapter
  • Wireless charging base (optional)
  • Hanging buckle (optional)
  • CD download card
